The LCG Suspension Conversion Kit is available exclusively to MPC members and is engineered to deliver a lower center of gravity, enhancing overall performance of the race car.
¶ Buildguide and Drawings
Work in Progress
At this time, no further notes have been provided by MPC members.
At this time, no further updates have been provided by the factory drivers.
Access to these parts requires logging in to shop.mayako.com and maintaining an active MPC subscription within your user profile.
Set works on both Electric and Nitro MX8.
MPC Member Area

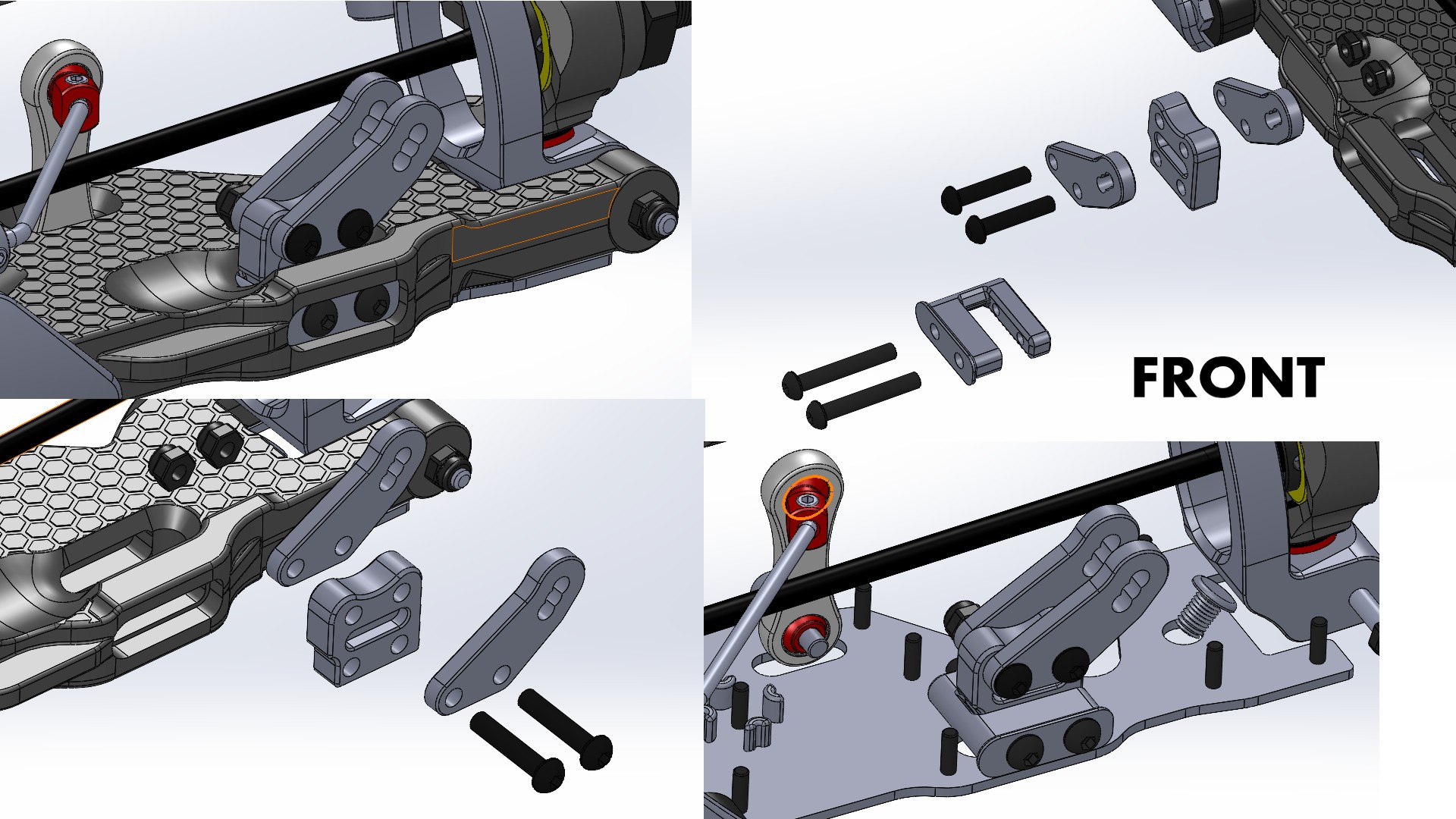

- Front & Rear Shock Towers.
- All plates and brackets for shock mounting to arms front and rear.
- All hardware
- Modified Wing Mount
- Modified Adjustable Length Rear Arms (They are used reversed, Left on Right and vice versa).
- Modified Shock Position Insert.
- 4pcs Complete Front Shocks with Long Shaft.
- 6x1.3 Pistons.
- Springs. We use Front Springs Front and Rear. Mayako Black and Brown Springs work. Invisible Speed Springs in Production.
- Floating Steering Servo Parts. They are Separate Parts, MYE0008A and MYE0008A-01
| Partnumber |
Name |
Store |
| MYB0196 |
54.5mm Rear Link Plate with Mounting Hardware for Mayako MX8 |
|
| MYB0196-01 |
56.5mm Rear Link Plate with Mounting Hardware for Mayako MX8 |
|
